While prototyping the looks of fluid and glass surfaces for Nespresso AR, we found we needed a solution for good looking transparency and refraction in AR on OpenGL 3.1. To get that solution, I came up with a really simple technique for simulating refraction at very little GPU cost. It works by using the AR camera image and altering it’s UVs to simulate a refracted image through an object.

First off we need to make our opaque material appear see through, we can achieve this by plugging screen space UV coordinates into the AR image UV input (the camera image itself).

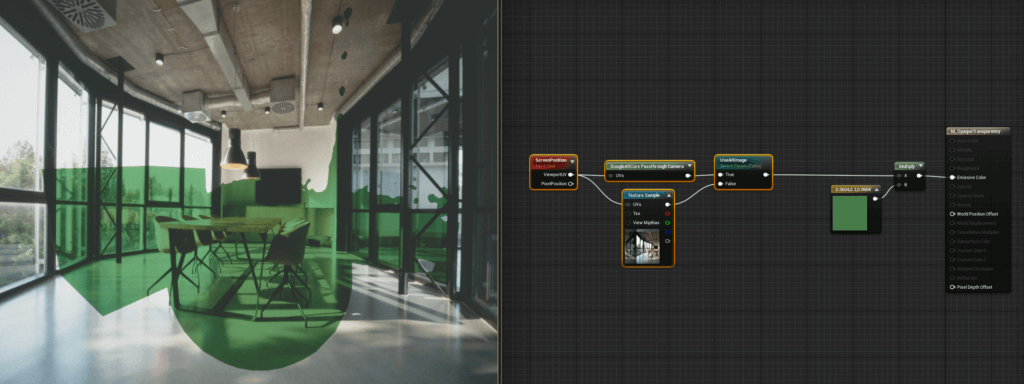

Screenshot of test scene of AR transparency in Unreal Engine

In this screenshot, I have set up a test scene with an example background image. I have also tinted the material to reveal silhouettes of the objects.

To get the refractive effect I use the surface normals to influence the screen space coordinates. Screen space coordinates are a 2D vector, while surface normals are a 3D vector that points in the direction perpendicular to the surface. Because the normals aren’t influenced by the camera’s position, I transform them from World Space to Camera Space.

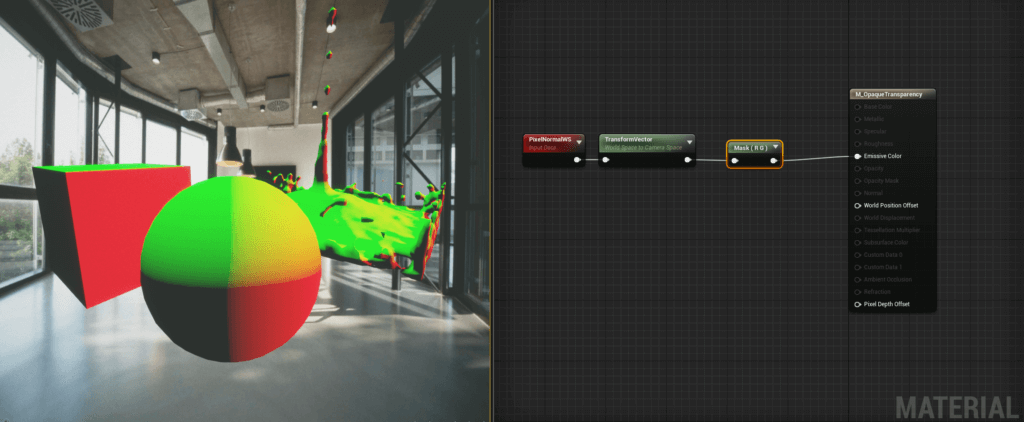

Screenshot of negative colour surface normals in UE4

Here’s what camera space normals look like, you won’t see negative colour but you can check if it’s there with an Absolute Value node.

With the camera space normals, I found that subtracting them from the screen space UV’s produces the desired refractive effect.

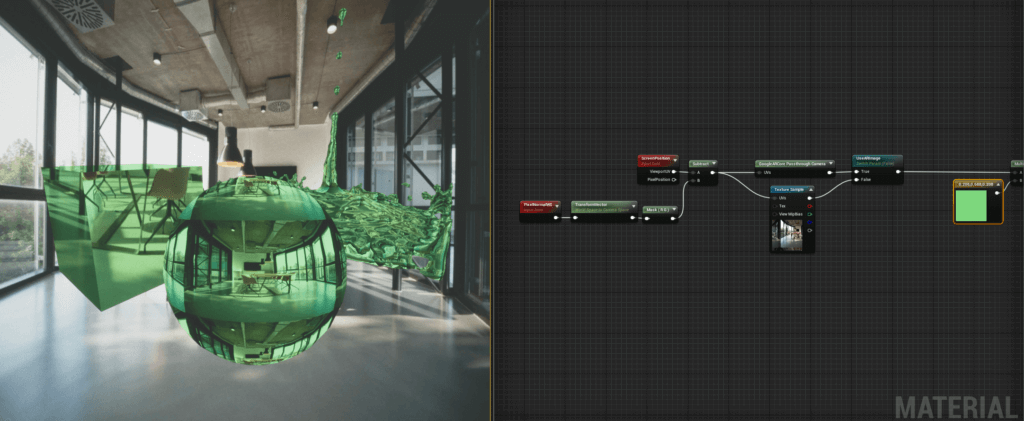

Screenshot of using camera space normals to produce refraction effects in AR

As you can see, the AR camera image starts to get tiled when the raw camera space normals are plugged in.

Now all that’s left is to artistically tweak the values to produce semi realistic refraction. I found using the fresnel node further helped show the object’s form.

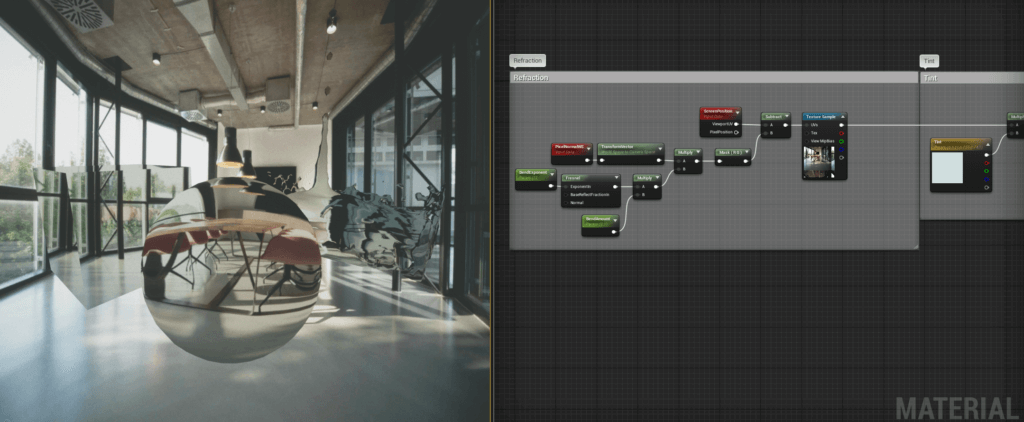

Screenshot of changing values in Unreal Engine to produce realistic refraction

These final touches are where the realism really starts to come together.

So that’s how I achieved cheap, good looking transparency and refraction for augmented reality. And by mixing this technique up with a few other material tricks, we can create all kinds of transparent mediums such as fluids, like coffee and glass for mugs.

Experiment with AR refraction in OpenGL 3.1 for Nespresso AR

The end result, ready to be replicated on any number of AR objects.
